Karcher EASY!Lock Dirt Blaster Nozzle TR 040
The new performance dirt blaster (nozzle size 40) offers the benefits of minimal internal power losses and maximum spray quality, enabling up to 50% higher cleaning and area performance than its predecessor.
Rotating Point Jet (+50% Power)
The rotating point jet on the rotary nozzle combines the advantages of a point jet and flat stream, achieving 10 times the cleaning power compared to conventional high-pressure nozzles. This high cleaning power as well as high area performance allows for enormous time saving as the dirt blaster quickly removes stubborn dirt.
Ø40 Nozzle Size
Nozzle size refers to the diameter of the opening through which the water flows, which is a critical factor in determining the water flow rate and the resulting pressure of the spray.
Compatibility & How To Use

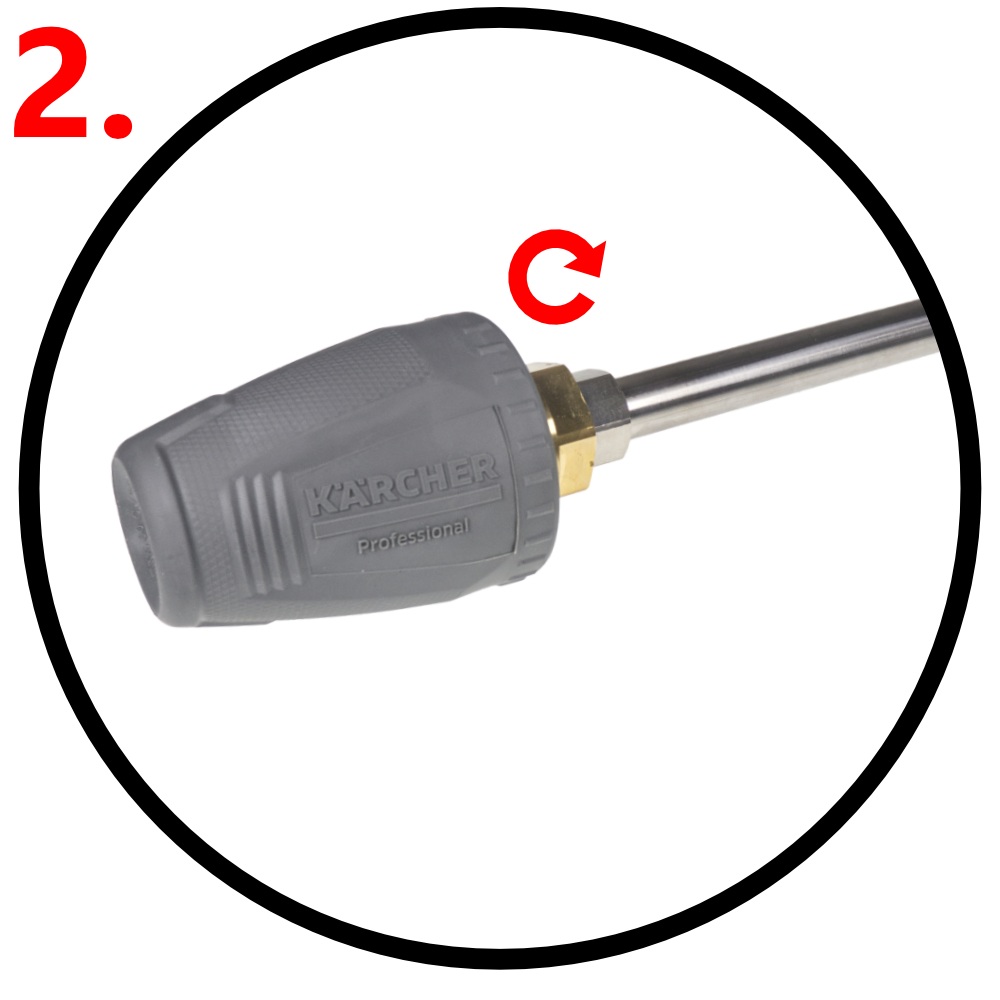

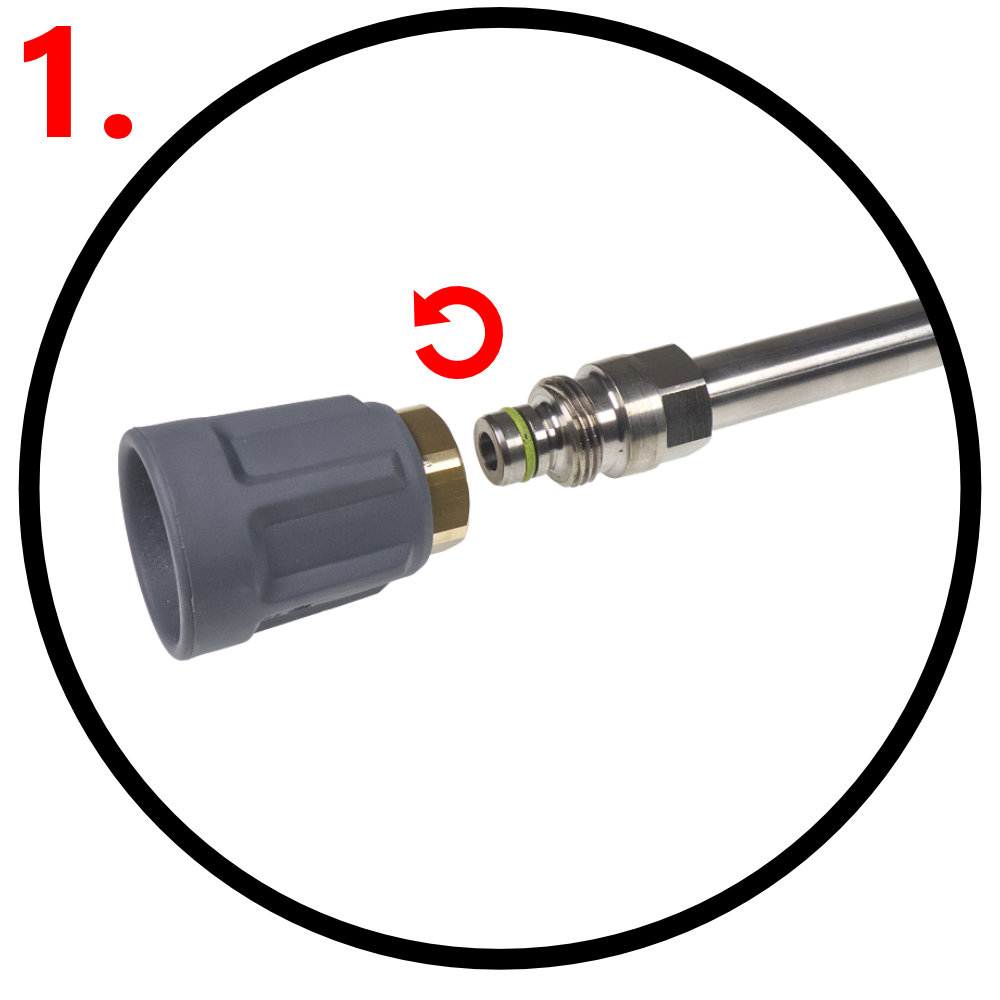

This nozzle is compatible with EASY!Lock lances*, simply remove the end of the lance (image 1) and screw on this nozzle in its place (image 2).
*If you are looking to use this nozzle with a older style lance that has a M18 x 1.5 connection and NOT an EASY!Lock connection, then you will require the following adapter: Adapter 7 (SKU: 13579140)
In order to confirm this nozzle will be compatible with your specific pressure washer, type your machine's model number in the 'check compatibility' box below.
Specification
The new performance dirt blaster (nozzle size 40) offers the benefits of minimal internal power losses and maximum spray quality, enabling up to 50% higher cleaning and area performance than its predecessor.
Rotating Point Jet (+50% Power)
The rotating point jet on the rotary nozzle combines the advantages of a point jet and flat stream, achieving 10 times the cleaning power compared to conventional high-pressure nozzles. This high cleaning power as well as high area performance allows for enormous time saving as the dirt blaster quickly removes stubborn dirt.
Ø40 Nozzle Size
Nozzle size refers to the diameter of the opening through which the water flows, which is a critical factor in determining the water flow rate and the resulting pressure of the spray.
- Smaller Nozzle Size = higher impact, more forceful jet of water.
- Larger Nozzle Size = lower pressure spray but a higher overall flow rate (GPM/LPM)
Compatibility & How To Use
This nozzle is compatible with EASY!Lock lances*, simply remove the end of the lance (image 1) and screw on this nozzle in its place (image 2).
|
|
*If you are looking to use this nozzle with a older style lance that has a M18 x 1.5 connection and NOT an EASY!Lock connection, then you will require the following adapter: Adapter 7 (SKU: 13579140)
In order to confirm this nozzle will be compatible with your specific pressure washer, type your machine's model number in the 'check compatibility' box below.
Specification
- Nozzle Size: 40
- Connecting Thread: EASY!Lock*
- Max. Pressure: 480 bar
- MPa max: 18
- psi max: 2611
- Max. Temperature: 60ºC | 140ºF
- Dimensions (L x W x H): 90mm x 57mm x 57mm
- Material: Ceramic Nozzle and Ceramic Bearing Ring
- Genuine Karcher Part
