Karcher M18 x 1.5 Triple Jet Nozzle 036

Karcher M18 x 1.5 Triple Jet Nozzle 036

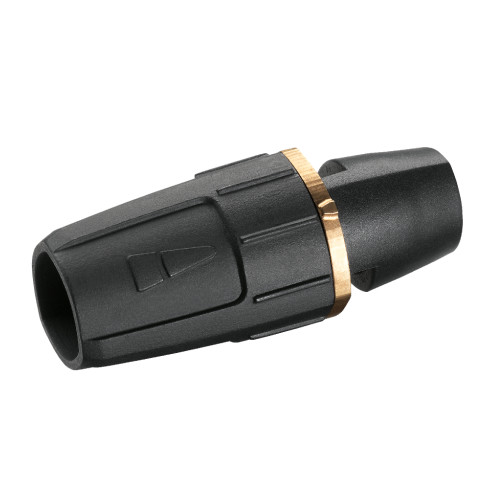

The Karcher Triple Jet Nozzle is a versatile three-in-one nozzle designed to handle a wide range of cleaning tasks with ease. Featuring manual nozzle changeover, it allows quick switching between spray patterns to suit different surfaces and dirt levels, providing convenient and controlled spray adjustment for efficient, adaptable cleaning performance.


3 Spray Angles

The Karcher triple jet nozzle allows the user to manually switch between 3 different spray options.

• 0º High-Pressure Point Stream
• 25º High-Pressure Flat Stream
• 40º Low-Pressure Flat Stream (useful for cleaning agent application with machines that have an injector)

Ø36 Nozzle Size

Nozzle size refers to the diameter of the opening through which the water flows, which is a critical factor in determining the water flow rate and the resulting pressure of the spray.

• Smaller Nozzle Size = higher impact, more forceful jet of water.
• Larger Nozzle Size = lower pressure spray but a higher overall flow rate (GPM/LPM)

Using the correct nozzle size ensures optimal performance and safety for both the operator and the machine. Too small and it creates excessive back pressure on the pump, which can strain the motor, potentially lead to long-term damage. Too large and it will result in insufficient pressure, reducing the machine's cleaning power and efficiency. The nozzle size should be matched to your specific pressure washer's flow rate and pressure rating.


Compatibility & How To Use

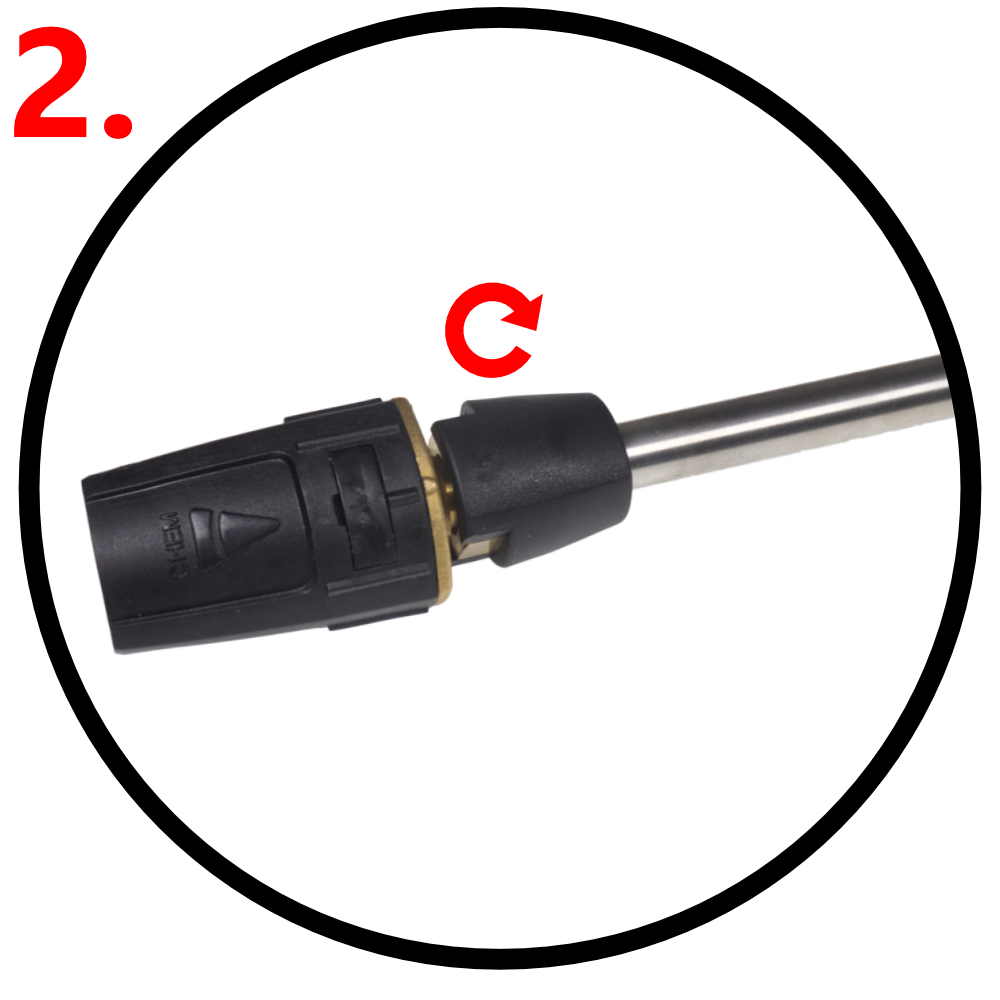

This nozzle is compatible with the older style lances that have a M18 x 1.5 connection, simply remove the end of the lance (image 1) and screw on this nozzle in its place (image 2).


If you are looking to use this nozzle with a EASY!Lock lance, then you will require the following: Adapter 8 (SKU: 8405635)

In order to confirm this nozzle will be compatible with your professional pressure washer, type your machine's model number in the 'check compatibility' box below.


Specification

• Connection Thread: M 18 x 1.5
• Max. pressure (bar): 300
• Nozzle Size: 36
• Max Temperature: 80°C
• MPa: 30
• psi: 4350
• Genuine Karcher Part
