ES Brass Lampholder Bottle Lamp Kit with In Line switch and Rubber Bung [KIT35]

£15.99 - £16.99
Kit 35
From £3.99 - Free over £50

ES Brass Lampholder Bottle Lamp Kit with In Line switch and Rubber Bung

Looking to turn a bottle into a table lamp. The Bottle Lamp Kit 35 with In Line switch and Rubber Bung and ES (E27) Lampholder will turn that bottle into a great looking lamp. With this Bottle Lamp Kit we have added all that you need for the flex to come through the bottle. Its important however to ensure that the hole in the top is between 17 & 24mm and then select the correct size bung. There are other bungs that can be used if not.

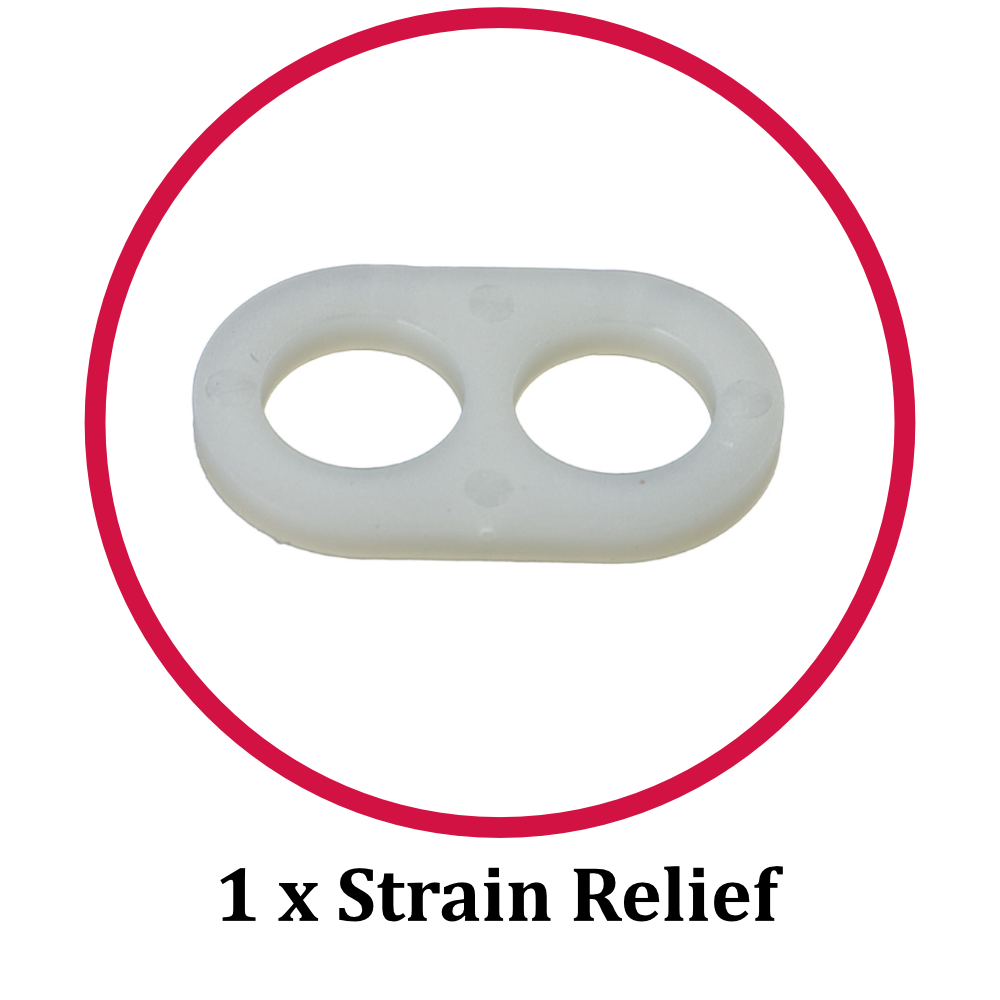

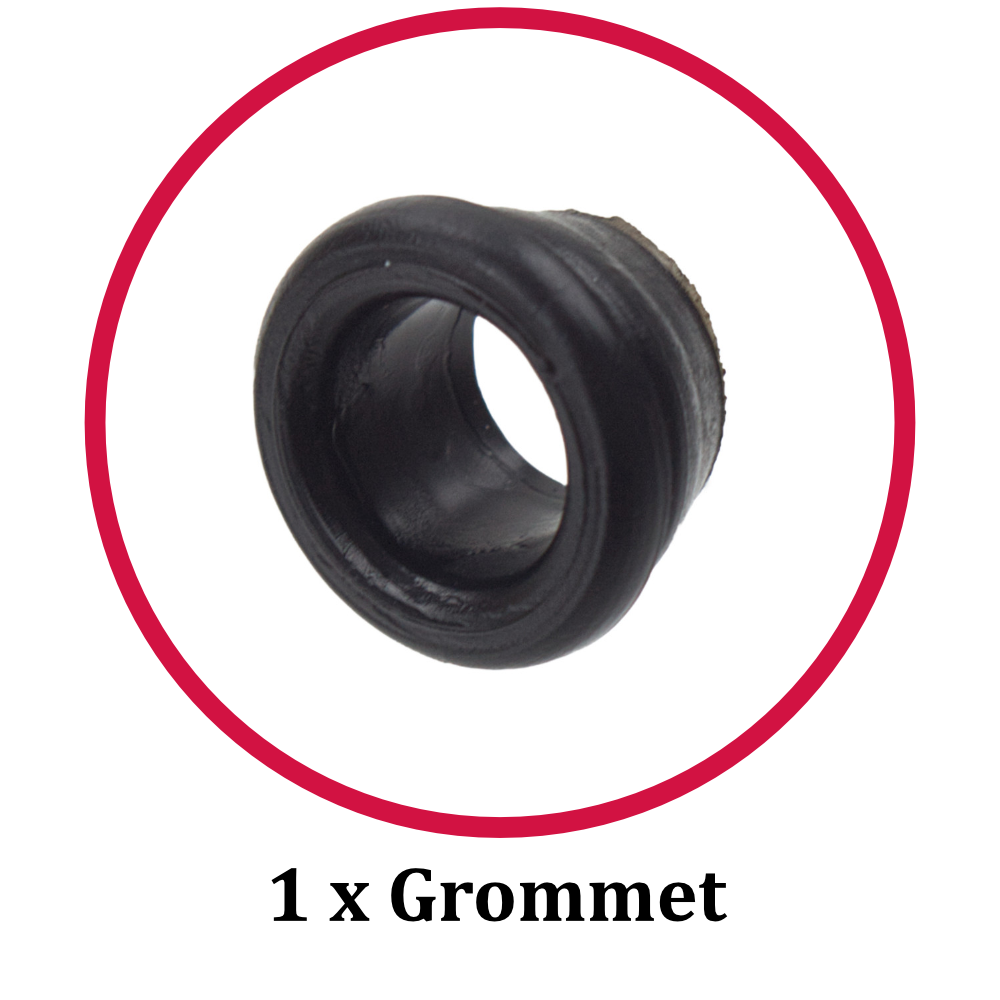

This kit 35 is intended to have the flex run into the bottle and a 10mm hole is required to be drilled. We then supply a plastic grommet for this hole. So once the hole is drilled and the grommet inserted. Feed the flex into the bottle and up out the neck. Add the strain relief onto the flex so it is set just behind the entry hole and taking the strain off the lampholder connections.

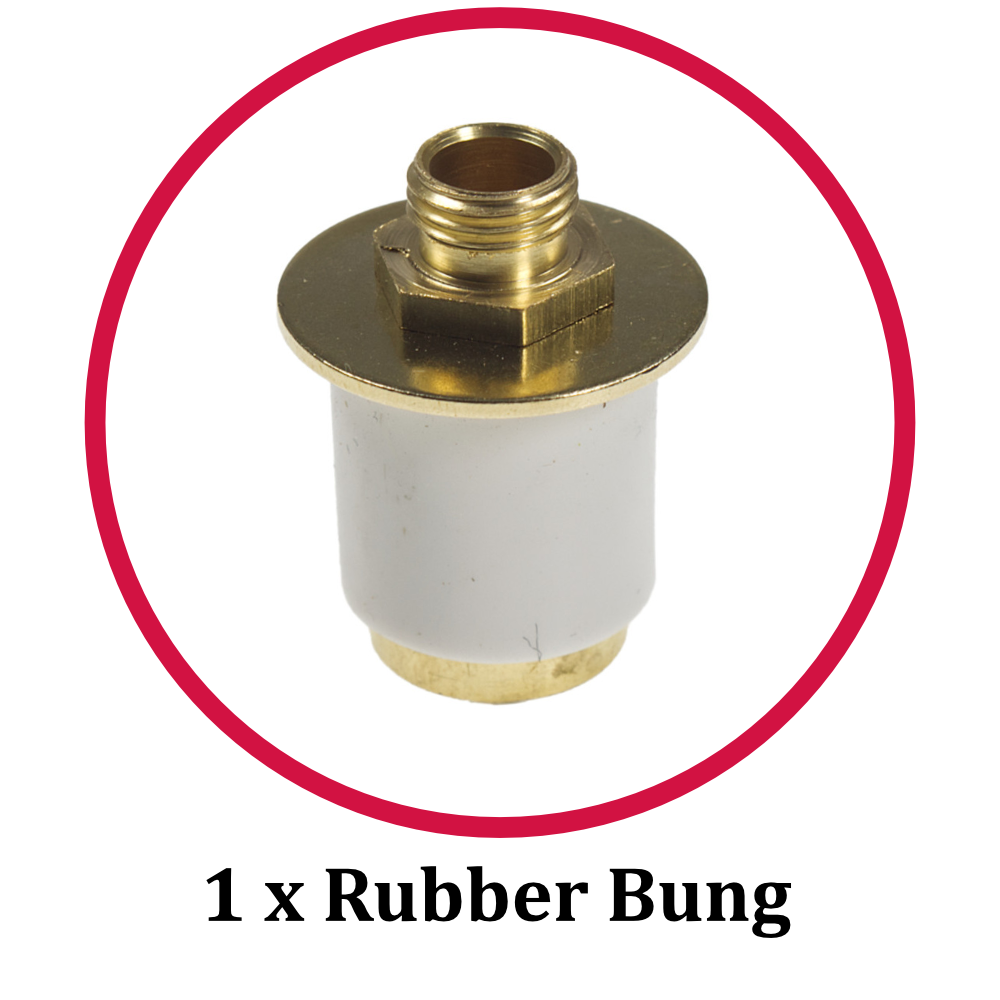

Then hand tighten the bung so it is a tight fit when pushed into the neck with the flex now coming out the top. With a spanner tighten the bung so it grips the bottle. Add the lampholder and you are all done.

Gin bottle not included. Mains lead length is 2.5m in total and the switch is a minimum of 800mm from the un-wired end.

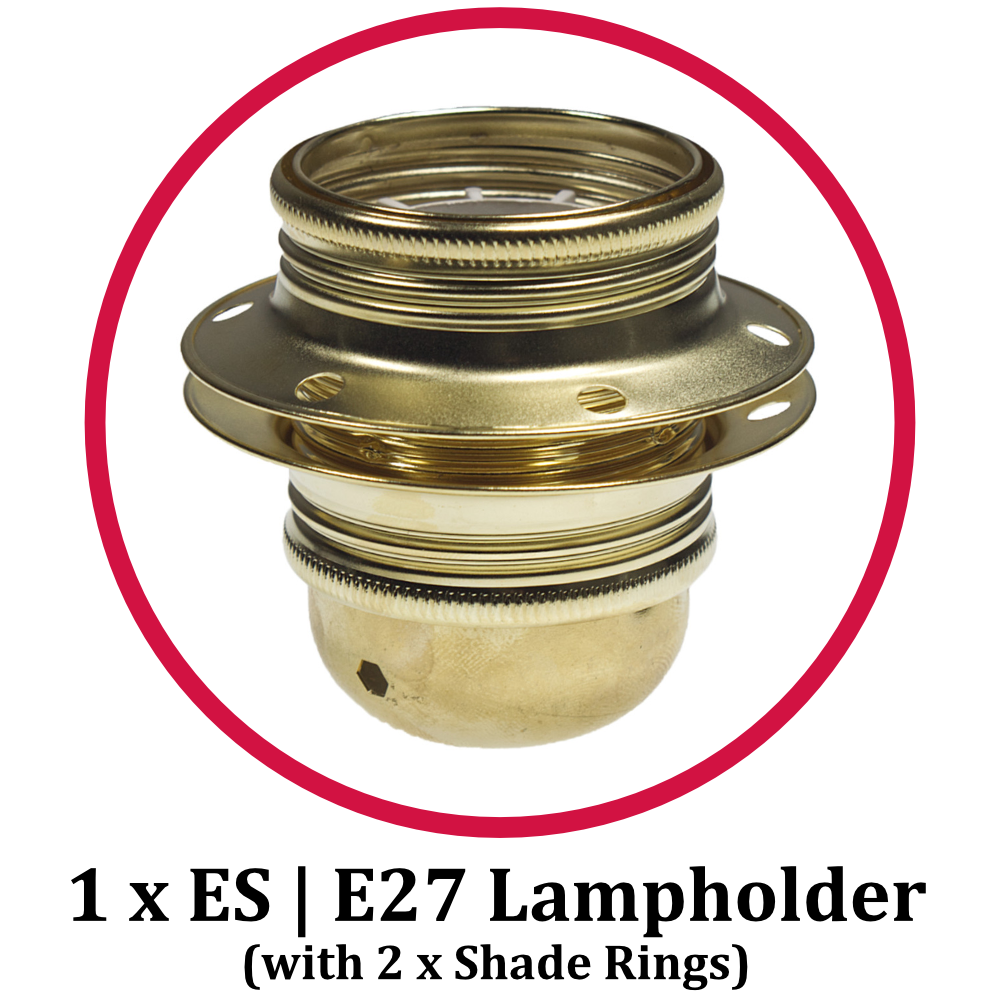

Lampholder takes a standard ES screw type light bulb. We also supply 2 shade rings to holde a shade in place with a 40mm fixing hole.

Please choose between the sizes of fixing bungs

17-19mm, 19-22mm, 22-24mm

Also choose the flex colour

Black, White, Gold

This kit comes with a Brass lampholder

Please keep the below guides to hand for when your kit arrives.
